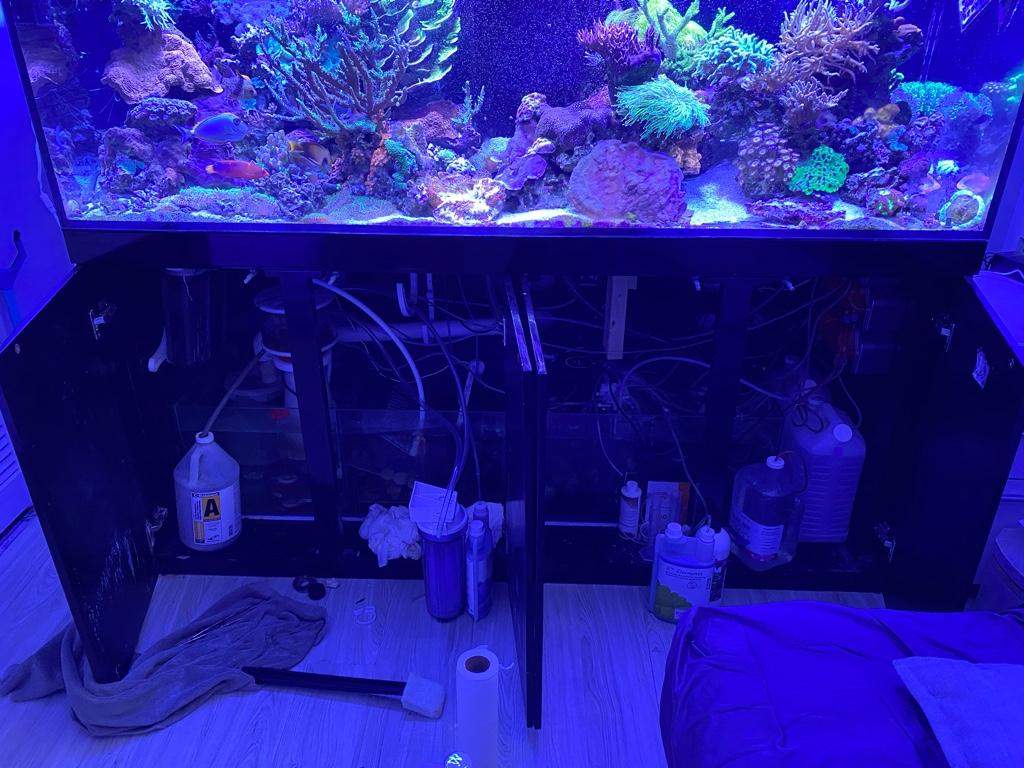

My glass sump busted it’s bottom seam and I need to remove it. However I can’t get it out with out moving two of the braces from the stand - pic below. Has anyone actually done this before?



Sent from my iPhone using Tapatalk


CHIPTW

New Reefer
Rating - 0%
0   0   0
You can but you should put them back afterwards


Sent from my iPhone using Tapatalk

What do you mean? I would need to pull them first before I can pull out the sump. Flawed design by the manufacturer- CAD Lights.


Sent from my iPhone using Tapatalk


D33_jeep

New Reefer
Rating - 0%
0   0   0
Do you plan on using the same sump? Also how did you get in there in the first place? Lastly if you don’t plant on reusing the same sump just cut while it’s inside.


CHIPTW

New Reefer
Rating - 0%
0   0   0
Do you plan on using the same sump? Also how did you get in there in the first place? Lastly if you don’t plant on reusing the same sump just cut while it’s inside.

Putting in a new sump. The tank and stand shipped with the sump already in it. I still need to remove at least one brace to get the new sump in.


Sent from my iPhone using Tapatalk


redseareefer

New Reefer
Rating - 0%
0   0   0
maybe cut two temporary wood braces for after removing the permanent ones they will be there for support in spot thats not in way and then quickly pull sump and throw back in the permanent ones… also if you can drain as much water as possible probably safest… id unscrew them and if theres still a ton of pressure on them youd know better what your dealing with…if they slide out then most the weight on four corners…redsea peninsula has a brace that goes in after sump is in but id probably feel safest draining as much water as i can when i plan on replacing sump in near future…


homegrowncichlid

Well-known Reefer
Manhattan Reefs
Rating - 100%
98   0   0
Location
Queens, NY
Those 2 front braces, which the doors close onto? looks like 1 x 2 inch lumber, plus you forgot the center piece which 2 doors are hinged onto. That's 3 in total.
I'm assuming the tank is supported by a 3/4" plywood wall, which runs continuously along the sides and back., there may also be a 2x4 legs at each corner? I can't see.
If so, I do not believe the 3 braces on the front are load bearing. They are just holding the doors and preventing center sag. (Imagine the stand if it was open cabinet, do you think it would hold?)
(There should also be cross beams going front to back, underneath the floor of the aquarium, or the roof of the stand.)
As mentioned above, using 2 temporary 2x4 braces, at each end, plus a 2x4 beam, tightly fitted above the braces going across entire opening would reinforce structure indefinitely, while you remove the sump. This would form a Bridge.

Would I do this? no, I'd empty it out. move water and livestock to temporary Home depot 22 gallon black storage bins, (the ones with the yellow cover). Because after your all done, you still have to install your braces and doors back again, using new lumber.

As for the simplest solution, repair the sump in place, clean it out, dry it, reseal it. You don't be able to get the silicone in between the glass panes for maximum strength, but if you do a good job, it will last. Needs to be super clean, remove all exposed silicone, (since the sealant wont stick to old silicone, you would need to reseal the entire sump, along all 8 corners, with plenty of contact with the glass. Not just a 1/8" bead, but more like 1/2"+. If the glass isn't clean, the seal won't hold.

You should find a carpenter to examine the stand before trying anything, for a professional assessment.
