DIY Reef Lighting: New color choices for DIY LED lights

by | Jun 4, 2012 | DIY, Equipment, Industry | 2 comments

Predictions were correct- high power light emitting diodes are overtaking the aquarium industry and starting to show up in everyday lighting solutions, replacing other conventional light sources. Our hobby is currently experiencing a true LED revolution- almost every respectable company has at least one model of light fixture featuring light emitting diodes, with many more still in the making. On top of that, the industry shifts it’s focus from PAR wars to products featuring more control-ability on consumer’s end and offering a broader spectrum of light. After all, we underestimated the LED chip light capabilities- a single diode delivers a massive amount of highly directional light that’s capable of growing almost any type of photosynthetic coral species. The only problem with LEDs is their rather narrow spectrum- they offer a light with very limited temperature range, therefore a fixture built with LEDs of only one color would replicate natural sunlight rather poorly. The solution to that is using a combination of leds of various colors and that’s what aquarium lighting companies are doing with their newest models. When high power LEDs first entered the consumer market, DIYers like me had little choice of colors- only two were available, cool white that produces a light of a color temperature between 5000-8000K and royal blue with 450-465nm wavelength Using a combination of those two colors, we’ve built light sources of reef compatible 10000-14000K color temperature. However,When you compare the light spectrum of this kind of lamp with metal halide bulb (for example Ushio 14000K as in the image below)

it is clearly seen LED light source is missing certain wavelenghts, especially in the green and red side of the spectrum.

The absorption characteristics of various pigments extracted from corals zooxanthellae show us the spectrum of light useful for corals symbiotic algae. For example, this graph represents absorption characteristics of the major pigments extracted from F. favus zooxanthellae

(source Photobehavior of stony corals: responses to light spectra and intensity article by O. Levy*, Z. Dubinsky and Y. Achituv.

As we see on the graph, while most pigments absorb light within 400-500nm wavelength range, some pigments absorb light of the green and red side of the spectrum also.

Times changed and so the lighting industry had to adapt to the new choices in LED chips. Manufacturers like Ecotech or Aquailluminations recently showed new lamps featuring LEDs of different than cool white or royal blue colors. Fortunately, those new types of LEDs are available to DIY enthusiasts as well and the whole purpose of this article is to showcase them and talk about their usefulness in reef lighting.

Please note that opinions and conclusions with those new type of leds are based on my own experiments and technical knowledge of “light gurus” in the hobby.

Before I proceed, I want to thank my friend Joe for lending me some of the LEDs for this article. I’ve made my observations by modifying the existing DIY light that hangs above my reef tank- I’ve added and/or replaced some of the diodes with these new color choices. Let’s talk a little bit about each one of them:

1.RED LED from Osram

With a wavelength of 660nm, Osram high power LED produces a light in the orange-red spectrum. Using the light of this wavelength in a reef tank creates the most controversy, because it’s a spectrum that promotes algae growth as well. Some chlorophyll pigments in corals absorb red light (I think those are the ones growing on shallows in the wild as with greater depths the red light is filtered away) readily, so supplementing with red spectrum is somewhat beneficial. I experimented with those leds myself and here is my take on the case- if you want reds in your light, at least don’t run them for the whole photoperiod, have them on separate channel and dim them down. They may promote algae growth ( I didn’t observe that myself though) and so they should be controlled independently. When driven on full power, the red light easily out competes other colors in a reef tank and it looks very unnatural (clownfish look like they’ve just came back from a tanning salon). Therefore I recommend wiring them with a dimmer and lower the intensity to about 30%, that’s when they blend with blue light nicely. However, red diodes can be tossed out from your DIY project and be replaced by few neutral white LEDs . What they are best suited for is observing your tank at night without disturbing the inhabitants (they can’t see red light, most of them at least). It;s a great way to spot that unwelcome hitchhiker who makes your other animals disappear:)

Other choices in red LEDs are Cree X-PE Red with a wavelength of 620-630nm, Cree XP-E Amber 585-595nm and Cree XP-E Orange 610-620nm

2. Green LED

The one I tested and is running on my system is Cree X-PE Green LED with a wavelength between 520-535nm. Green diode, in my opinion, makes a big difference in reef LED lighting. Most pigments in zooxanthellae absorbs light of these wavelengths and it was clearly missing in the blue and white lamp models. My personal observations led me to believe that introducing a green spectrum into DIY LED light help corals grow and color up. I installed 4 green LEDs in my fixture couple of months ago and I see change in coral coloration and vibrance. On top of that, adding green diodes bring up colors in most green SPS and zoanthids. They can be run on the same string as white LEDs and don’t have to be dimmed.

3. True Violet LED

Another interesting color. With a wavelength of 420-425nm, they are the closest thing to UV light you can get. I am sure some of their spectrum falls behind of what human eye can see, as even when I drive them at full power ,they look like they are barely on. I have yet to see a long time advantage of using near-UV lighting, but it fills the spectrum gap useful to corals. There is a hot debate about them and so they may be the next big thing in aquarium lighting. The only ones you can get are no-name Chinese chips that look like on the picture below. Make sure you drive them at maximum 700mA current, anything higher will shorten their life significantly. I recommend getting few of them and run them on a separate string with other no-name leds.

4.Turquoise LED

With a wavelength of between 495-500nm, turquise led is another interesting addition to a DIY project. The color falls between blue and green and could supplement these two by adding extra wavelenghts. My opinion on these is that while they add to the spectrum, the fact that they can be driven only at maximum 700mA makes them less usable. The combination of blue and green CREE chips can easily replace turquise leds. Again, you can only get them as no-name brand at the time of writing this article.

5.Cree X-PE Blue LED

Not to be confused with Cree Royal Blue series of LEDs (wavelength 450-465nm), this blue diode emits light of wavelengths between 465-485nm wavelength. The light output is much more bright compared to RB. In my opinion, it’s the second best thing (next to green LED) to add to your DIY setup. Featuring wavelengths that are missing with using only RB LEDs, this color really helps filling the gap in LED light spectrum. Because of their increased brightness, these LEDs won’t make a good moonlight by themselves, so I recommend using them sparingly as a supplement to royal blue channel or run them on separate string, along with green LEDs.

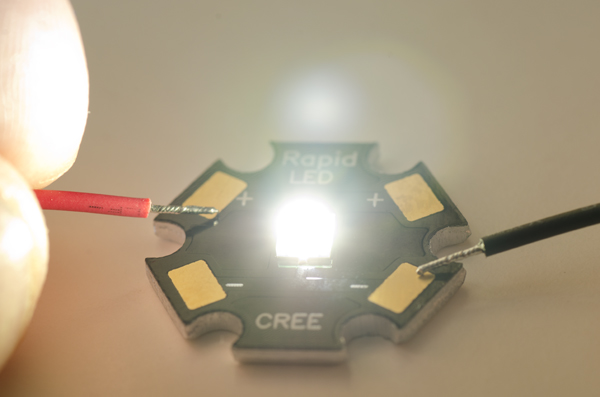

6.Cree XP-G Neutral White LED

Since the introduction of white LEDs to a consumer market, only Cool white color was available to purchase, but that changed and we have two more “whites” to choose from nowadays, neutral white being one of them. NW Cree XP-G emits a white light with color temperature of 3,700-5,000K, much like some daylight fluorescent tubes. This type of light is on the edge of chlorophyll pigments absorbance in corals and can supplement those few orange and red wavelengths to an aquarium lighting without the need to use red diodes. It’s a good addition to a DIY, however I wouldn’t use more than 1 for every 12LED-string as it can easily shift the color spectrum and make the tank appear yellow.
Cree XP-G Warm White LED

The other white LED available on the market is Warm White Cree XP-G, with a color temperature of 2600K-3700K. This color temperature can be compared to a standard incandescent bulb and, in my opinion, should be avoided in a reef tank for being too much into yellow-red side of the spectrum. It would be a good choice for a freshwater planted tank or a refugium devoted to growing macrolagae (however, I would still use neutral whites for the refugium).

I’ve talked about majority of new LED colors available on the market today and I hope this article will help you decide which LEDs you should use for your next DIY project. I purposely avoided mentioning the CREE’s newest XM-L U2 LED as it deserves it’s own article (coming soon:)) Meanwhile, enjoy your projects and let me know if you have any questions regarding high power LEDs.

  • Marcin Smok

    Marcin Smok is a reefer, photographer, traveler, SCUBA diver and avid DIY-er. He has been keeping freshwater fish tanks since he was 9 years old and saltwater tanks for the past 10 years. Check his photography site at and follow his Facebook profile

    View all posts


  1. chillermikedavis

    Hello I am curious as to the size and quantity of leds in your fixture you mentioned in your article. I am running 36 royal blues and 26 cool whites on a 75 gallon tank. {all cree’s} After reading your article I would like to add some red and green. Tanks Mike

    • Marcin Smok

      My already finished built for a future tank consist of three strings of cool white xp-g diodes driven at 1A where each string has an extra one neutral white LED, one green xp-e and one philips cyan diode, 3 strings of royal blue leds (x-pe) and a separate string for near-uv diodes (12 of them) driven at 700mA. The white and blue channels are dimmed using an apex controller (I’m in a process of finishing article about apex dimming) and the uv leds use non-dimmable driver. Hope that helps
