I am not using meanwell powersupply, i have ordred PowerOne powersupply since this is being used in wide variety of hospital equipment and it comes with built in 12v fan that comes on when it heats up very nice specs are 500w 10.8 amp 48v which gives me enough room to add more drivers for future upgrades....

Very good, i will post pics, how corals grow, i may start this weekend to build new fix., i already got, Power .....http://www.ebay.com/itm/121153735974?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649.......+ many LEDs.



[vio]

very nice fixture looking forward for the pictures of your new fixture you ordered....

this the last update, i gone use 126 LED per side (left 126, 9 x 14 leds, same for right after i finish, the left first.) 15,16,17 i will cut off, wont fit in one driver ( 48 V)
Ch. 1 White
Ch.2 RB
Ch.3 420-435 Viole
Ch.4 Purple ( made by RB ,Deep red, White)
Ch. 5 Blue (470-485 nm)
is gone be 9 rows (horizontal line)
i may change lol.:knockedou
Row #1 White 15.000 K (14 LEDs)
#2 RB (455 nm) (14 LEDs)
#3 Violet (420-435 nm) (14 LEDs)
#4 Purple ( made by RB,Deep Red + 6.500 K White) (Mix.)
#5 White 15.000 K (14 LEDs)
#6 Blue (470-485) (14 LEDs)
#7 Violet (420-435 nm) (14 LEDs)
#8 RB (455 nm) (14 LEDs)
#9 White 15.000K (14 LEDs)



[vio]

That the Power Supply i gone use. Also , today i instal more LEDs.:knockedou



[vio]

more pics. (No lens) this is Left side, Right will be 8 Rows (total 16 Ch.) i already order 9 drivers + Storm X (16 Ch.) burn 340 W (left side) on Full, i may use 50% only , evan less.:knockedou



[ravi197699]

Hey Vio how many lights are you building.... this is nice fixture though, how many gallon tank you are going to use this light for.....



[vio]

Hey Vio how many lights are you building.... this is nice fixture though, how many gallon tank you are going to use this light for.....

i may set up 200-300 gal. at work, so water, electric bill (free), i hope my boss is NOT a member here.lol:knockedou



[beastium]

Beautiful



[vio]

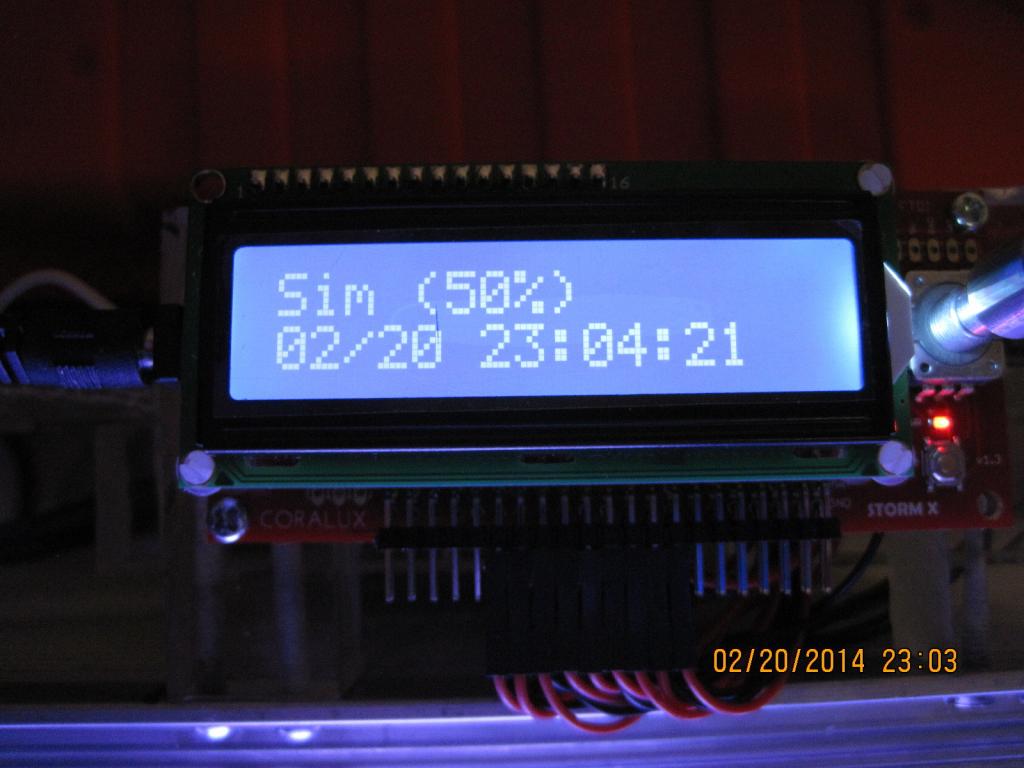

New updates + New pics, so far i love this Storm X, so cool,http://coralux.net/wp-content/uploads/wpsc/downloadables/Storm-Controller-Manual.pdf



[ravi197699]

Hey Vio this is really nice and i am going to start working on my fixture soon, I am using same parts but my drivers are not with wires and I am using storm X as well. I may have few question about the connections from power supply to controller and LDD drivers to controller. PM me your number if you dont mine and i can save it in my phone and call you when I try to connect everything together... Very nice build...



[vio]

I pm u.



[vio]

Hello reefers,

I am building a fixture for friend of mine and we came up with this color combination. We will be running these led's with LDD-1000h and LDD 700H drivers with Coralux board and controller Storm-X. Please provide your feedback and suggestions and let us know if we have correct color combination. T

Thanks,

Rav

This is dif. then the one just work ?
I think in last one u got to much blue ?



[vio]

i mean this.



[ravi197699]

led

You are correct, I changed the color ratio on the newer design, if you go back few pages on the thread I have posted this layout as well.. I like this color combination better and less confusing when mounting led's

i mean this.



[vio]

did u got the fans?



[ravi197699]

I am going to use 6 fans on this unit and I am thinkiing build case that is going to cover the leds and sides of the heatsink and I am going to spray seal leds and connection with Electric clear sealer just to add extra protection of moisture....I will be uploading some pictures this weekend....



[vio]

wow, so Good for next 20 years.lol



[ravi197699]

I would say few years lol



[vio]

I think I gone buy one of this light, if I like it, I will buy more...
